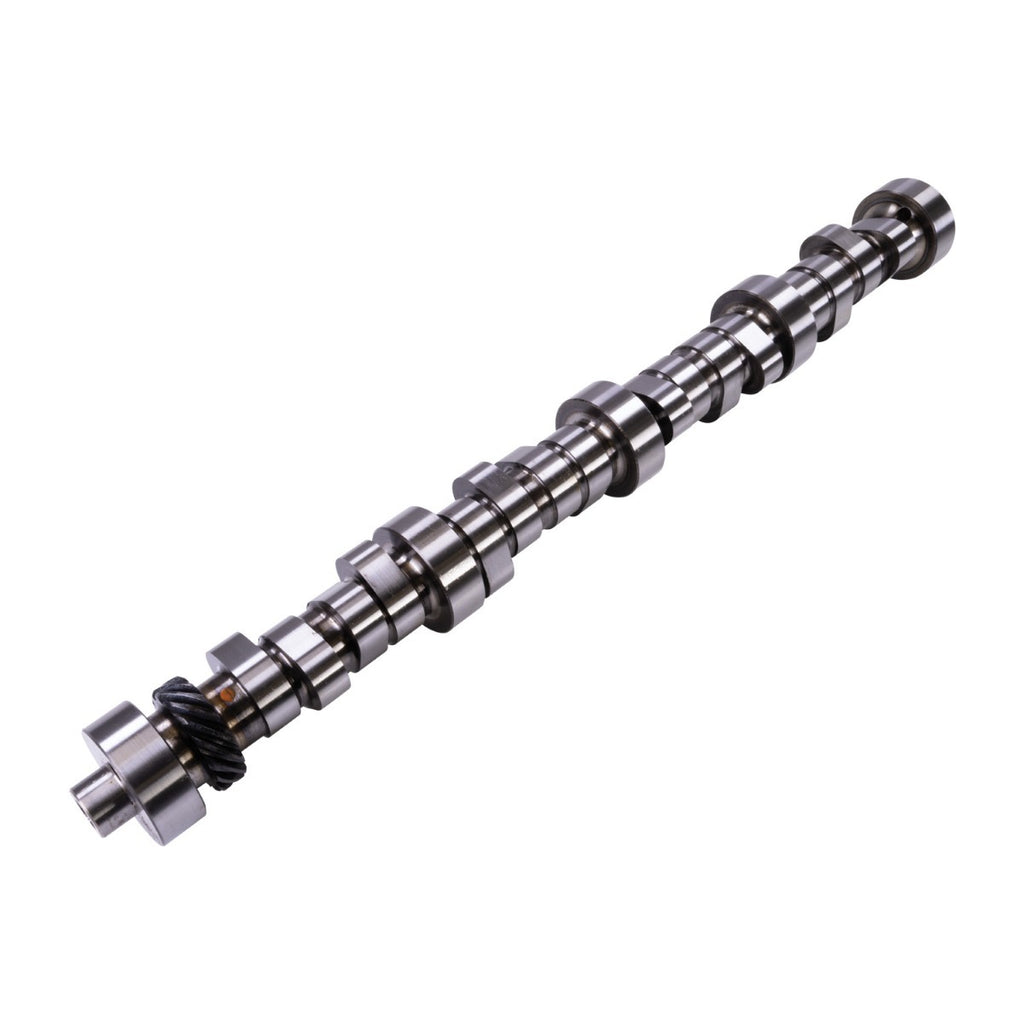

COMP CAMS 31-493-9 COMP Cams 31-493-9 Xtreme Energy Hydraulic Roller Camshaft for Small Block Ford

Upgrade your Small Block Ford engine with the COMP Cams 31-493-9 Xtreme Energy hydraulic roller camshaft. Designed for street and performance applications, this camshaft delivers a responsive powerband with strong throttle response and dependable hydraulic roller operation. Its profile is engineered for enthusiasts seeking improved engine performance without sacrificing practical drivability.

The camshaft provides 0.514 inches of intake lift and 0.509 inches of exhaust lift, with advertised duration ratings of 270 degrees intake and 278 degrees exhaust. A 110-degree lobe separation angle helps shape the engine’s power delivery and supports a broad operating range. The recommended RPM range of 1,800 to 5,800 RPM makes this profile well suited to performance-oriented street vehicles and moderate combination builds.

As part of the Xtreme Energy line, the COMP Cams 31-493-9 is designed to work with compatible Small Block Ford hydraulic roller valvetrains and supporting components. Proper installation requires checking valve-to-piston clearance, retainer-to-seal clearance, spring specifications, pushrod length, and other critical valvetrain measurements for the specific engine combination. Always follow the manufacturer’s installation procedures and verify compatibility before assembly. This camshaft is sold individually and is intended for use in applications where its lift, duration, lobe separation, and RPM characteristics match the overall engine setup.

Features:

• COMP Cams Xtreme Energy hydraulic roller camshaft for Small Block Ford engines

• 0.514-inch intake lift and 0.509-inch exhaust lift for performance-focused valve motion

• 270 degrees of intake duration and 278 degrees of exhaust duration

• 110-degree lobe separation angle for a responsive, broad operating profile

• Recommended operating range of 1,800 to 5,800 RPM

• Supplied as an individual camshaft for compatible hydraulic roller valvetrains
