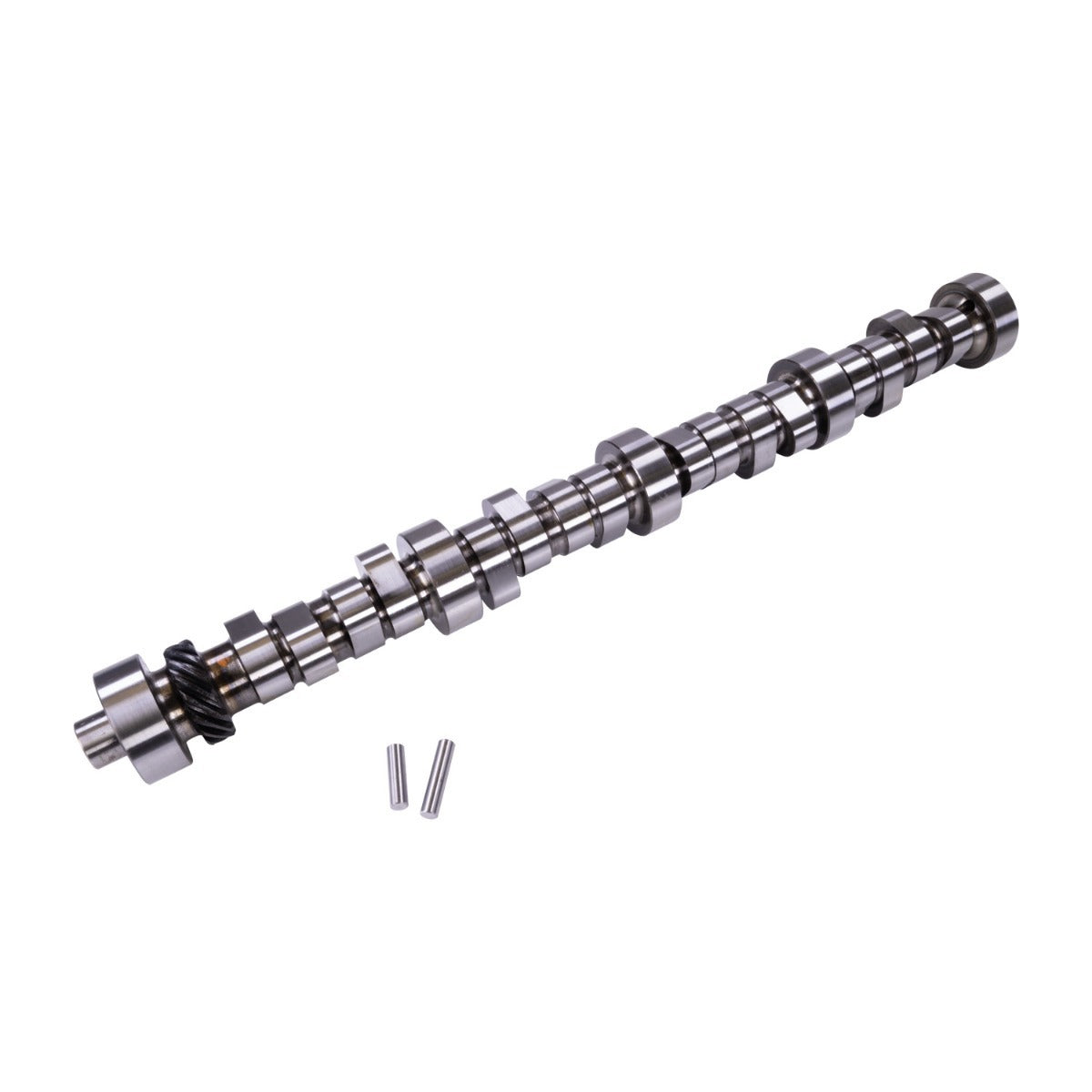

COMP CAMS 31-494-9 COMP Cams 31-494-9 Xtreme Energy Hydraulic Roller Camshaft for Small Block Ford

Upgrade your Small Block Ford engine with the COMP Cams 31-494-9 Xtreme Energy hydraulic roller camshaft. Designed for performance-oriented applications, this camshaft delivers a balanced combination of valve lift, duration, and lobe separation for strong operating-range performance. It is engineered as a direct camshaft component for compatible Small Block Ford setups and is sold individually.
The 31-494-9 camshaft features valve lift of 0.514 inches on the intake and 0.509 inches on the exhaust, along with duration figures of 278 degrees intake and 284 degrees exhaust. Its 110-degree lobe separation angle supports the intended powerband and helps define the engine’s overall throttle and rpm characteristics. These specifications make it a suitable choice for builders seeking a performance camshaft with a clearly defined operating range.
The recommended operating range is 2,000 to 6,000 rpm, making this COMP Cams Xtreme Energy camshaft appropriate for street performance, weekend vehicles, and other applications that benefit from usable midrange and upper-rpm capability. Before installation, verify compatibility with the engine block, cylinder heads, valvetrain components, compression ratio, and vehicle application. Proper installation and valve-train setup are essential for achieving reliable performance from a hydraulic roller camshaft.

Features:

• Camshaft Type: Xtreme Energy hydraulic roller camshaft

• Application: Small Block Ford engines

• Valve Lift: 0.514 inches intake and 0.509 inches exhaust

• Duration: 278 degrees intake and 284 degrees exhaust

• Lobe Separation Angle: 110 degrees

• Operating Range: 2,000 to 6,000 rpm

• Brand and Part Number: COMP Cams 31-494-9
