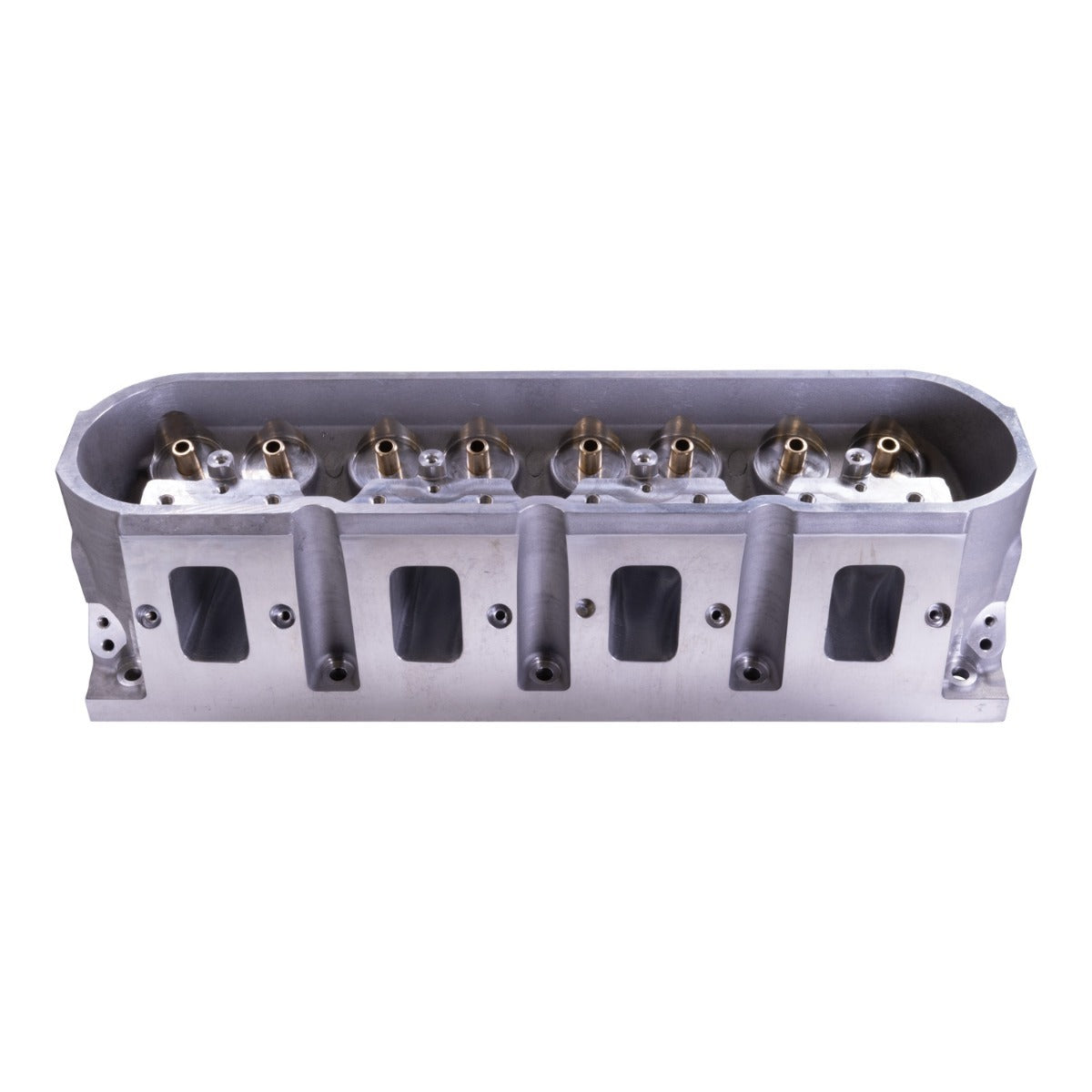

EDELBROCK 77699 Edelbrock Victor CNC LS7 Cylinder Head 77699 for GM LS-Series

The Edelbrock Victor CNC cylinder head is designed for GM LS-Series applications and features a bare aluminum casting with a 6-bolt flange. This head is supplied individually and is configured for high-flow performance with 2.250-inch intake valves and 2.200-inch exhaust valves.

Its CNC-machined intake ports provide a 307 cc intake volume, while the combustion chamber measures 69 cc. The bare configuration allows builders to select and install compatible valvetrain components according to their specific engine combination and assembly requirements.

Part number 77699 delivers Edelbrock Victor CNC LS7 cylinder head design in an aluminum construction for LS-Series engine projects. Review engine specifications and component requirements before installation to ensure the cylinder head is appropriate for the intended application.

Features:

• Brand: Edelbrock
• Part Number: 77699
• Cylinder Head Type: Victor CNC
• Application: GM LS-Series
• Configuration: Bare cylinder head
• Material: Aluminum
• Intake Valve Diameter: 2.250 inches
• Exhaust Valve Diameter: 2.200 inches
• Intake Port Volume: 307 cc
• Combustion Chamber Volume: 69 cc
• Flange: 6-bolt
• Quantity: Sold individually
