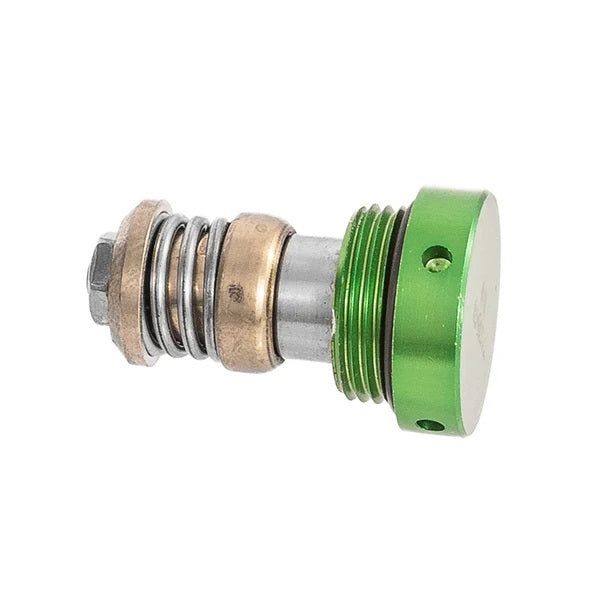

SETRAB OIL COOLERS SK-TOV180-22 Setrab Oil Thermostat Valve SK-TOV180-22, 22 mm x 1.5 Thread, 180°F

The Setrab Oil Thermostat Valve SK-TOV180-22 helps manage engine oil temperature by regulating oil flow through an oil cooler system. This thermostatic valve begins activating at 180°F, allowing oil to reach operating temperature efficiently before directing flow through the cooler. It is designed for applications that require consistent temperature control and dependable oil system performance.
Constructed from lightweight aluminum with a green anodized finish, the Setrab SK-TOV180-22 offers corrosion resistance and durable service in demanding automotive, motorsport, and performance applications. The valve uses a 22 mm x 1.5 thread connection and includes a Viton O-ring for reliable sealing and compatibility with elevated-temperature oil system environments.
The compact inline design supports clean installation in custom oil cooling layouts while helping reduce unnecessary restriction when the oil is cold. Once the activating temperature is reached, the valve progressively supports oil cooler circulation to help maintain stable operating temperatures during extended or high-load driving. Verify thread, system configuration, and installation requirements before ordering.
Feature: 180°F activating temperature for controlled oil cooler operation
Feature: 22 mm x 1.5 threaded connection
Feature: Lightweight aluminum construction
Feature: Green anodized finish for added surface protection
Feature: Viton O-ring included for reliable sealing
Feature: Suitable for performance, automotive, and motorsport oil cooling systems

Features:

• 180°F activating temperature for controlled oil cooler operation

• 22 mm x 1.5 threaded connection

• Lightweight aluminum construction

• Green anodized finish for added surface protection

• Viton O-ring included for reliable sealing

• Suitable for performance, automotive, and motorsport oil cooling systems
