Neck Support Systems for Racing: The Complete Guide To Staying Safe At Speed

In safety-performance terms, FIA-backed data shows that a HANS device can cut head movement by roughly 44% and neck loading by about 86% in a crash, which is the difference between walking away and a life-changing injury. If you are strapping into a race car without thinking about neck support systems, you are leaving way too much to chance.

Key Takeaways

1. Why Neck Support Systems Matter In Modern Racing

Neck injuries used to be part of the accepted risk in motorsport, but modern data has changed that thinking completely. Top series like Formula 1, NASCAR, and NHRA now treat head and neck restraints, HANS-ready helmets, and compatible harnesses as non-negotiable.

Formula 1 has required the HANS device since 2003, and NASCAR’s top series mandated head and neck restraints back in 2001. Those decisions were driven by hard crash data, not theory, and today that same technology is available to weekend warriors at local tracks across Canada.

The Neck Support “System” Concept

When we talk about neck support systems, we are not talking about a single gadget. We are talking about a matched setup that includes a head and neck restraint, a compatible helmet, and a properly rated multi-point harness.

If any one of those pieces is wrong, your overall protection suffers. That is why we focus on gear that is labeled “Head and Neck Support Ready” or “HANS Ready” so you can build a system that actually works together.

From Pro Paddocks To Local Tracks

Head and neck restraint use started in top-level categories, then filtered into almost every sanctioned form of racing. NHRA, for example, now requires an SFI 38.1 neck restraint at 150 mph and above, with strict rules on harness specs.

This same safety logic applies whether you are running an open-wheel, a stock car, or a time attack build. Once you understand how the system works, it becomes clear there is no good argument for racing without it.

2. Core Components Of A Racing Neck Support System

A proper neck support system has three main parts that must work together. Get these right and you dramatically reduce the risk of severe neck injury in both frontal and oblique impacts.

Those three parts are the helmet, the head and neck restraint itself, and the harness that holds you and the device in place. Each has specific features to watch for.

Helmet: “Head and Neck Support Ready”

Your helmet needs threaded anchors or reinforced points to accept HANS posts or similar hardware. Many modern helmets call this out directly in the description.

For example, the ZAMP H77203FXXL RZ-59 is a full-face Snell SA2020 helmet listed as “Head and Neck Support Ready,” priced at CAD279.35. That language tells you it is built with neck restraint use in mind.

Harness: HANS-Compatible Shoulder Belts

The head and neck restraint sits under the shoulder straps, so the belt profile and build matter. Look for “HANS Ready” or “HANS” in the harness description along with SFI 16.1 or 16.5 certification.

We will get deeper into harness specs later, but as a rule, a modern 5 or 6 point harness with HANS-specific shoulder straps is the standard choice for serious track work.

3. Helmet Choices For Neck Support: Full Face vs Open Face

The helmet is the first part of the system you put on, and it has a huge impact on both safety and comfort with a neck restraint. Full-face and open-face designs both work, but each suits different disciplines and driver preferences.

We stock both types in Snell SA2020 and newer SA2025 ratings, all aimed at drivers who run neck support systems in anger at the track.

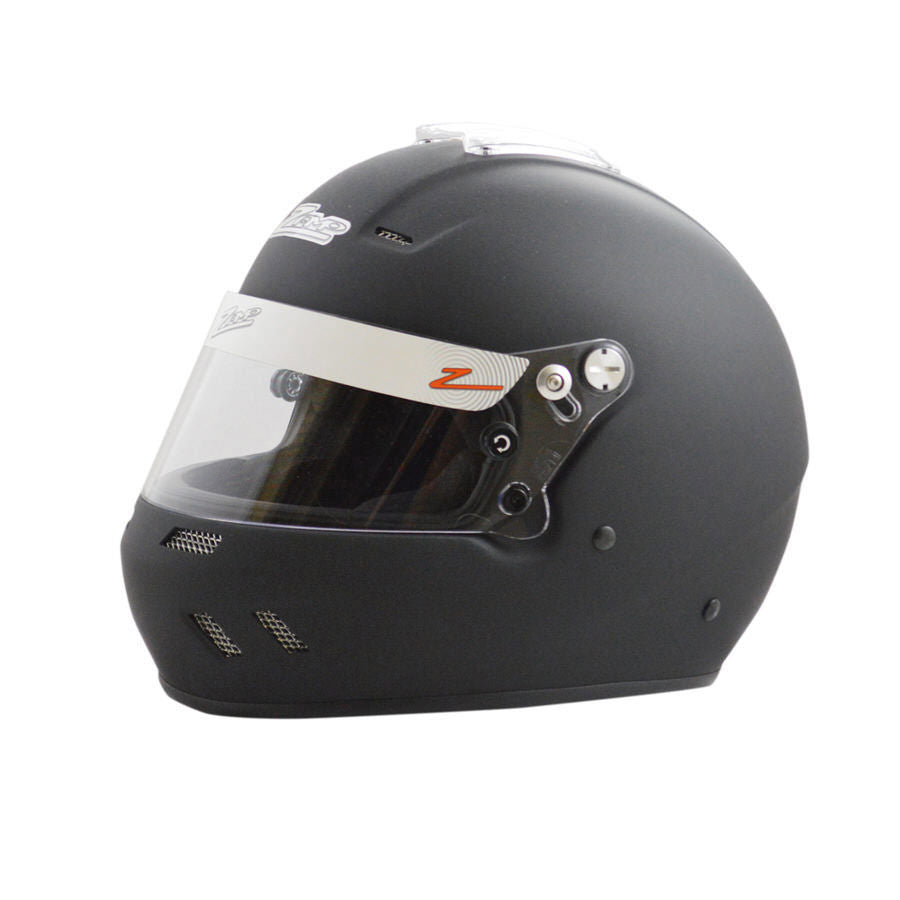

ZAMP RZ-59 SA2020 Full Face, Head and Neck Support Ready

The ZAMP H77203FXXL RZ-59 full-face helmet is a practical option for racers building a complete safety setup. It carries the Snell SA2020 rating, works with head and neck restraints, and comes in a flat black finish at CAD279.35.

Full-face helmets like this are popular in door cars, time attack builds, and many oval applications because they offer strong protection from debris and fire along with easy integration of HANS posts.

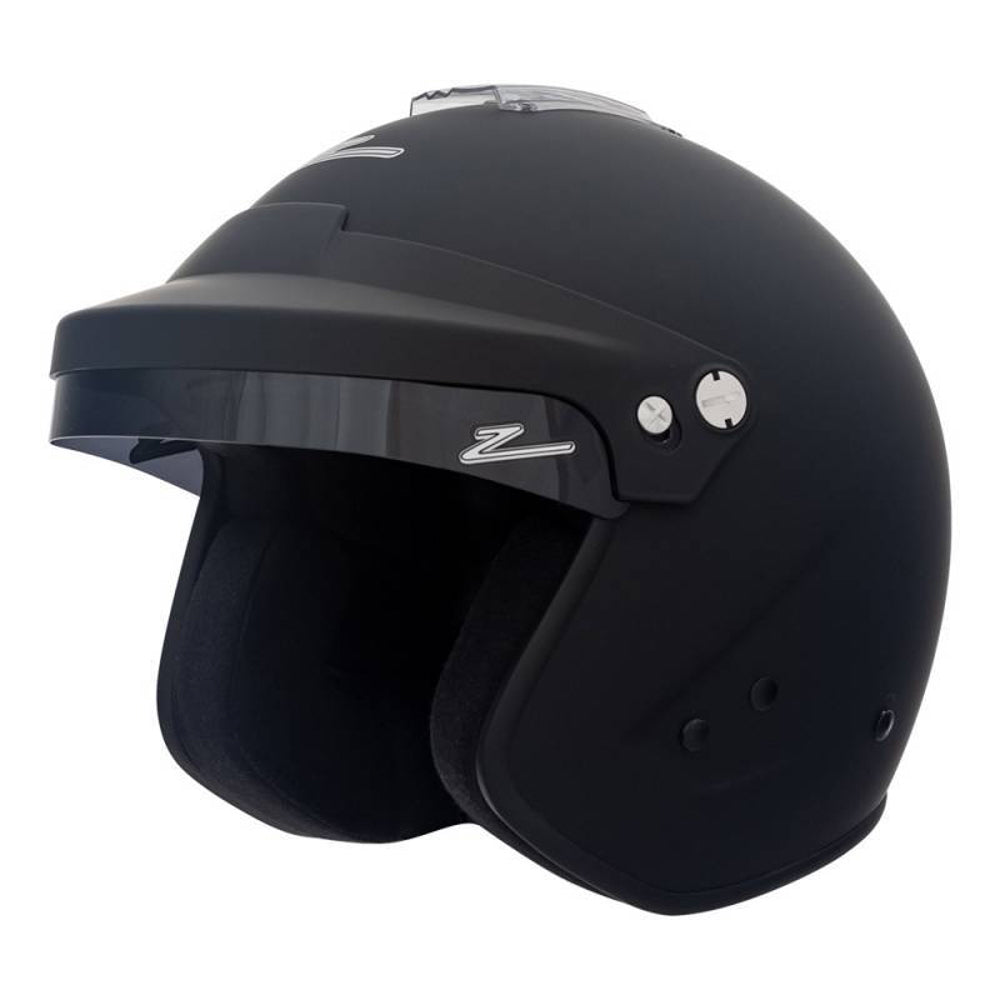

ZAMP RZ-18H SA2020 Open Face, Head and Neck Support Ready

If you prefer an open-face design, the ZAMP H77403FS RZ-18H is an SA2020 open-face helmet that is still “Head and Neck Support Ready.” It is a solid choice for drivers who want more ventilation or run in cars where open faces are common.

Priced at CAD179.72, this helmet gives you a budget-friendly entry into neck support systems without compromising on Snell certification or HNS compatibility.

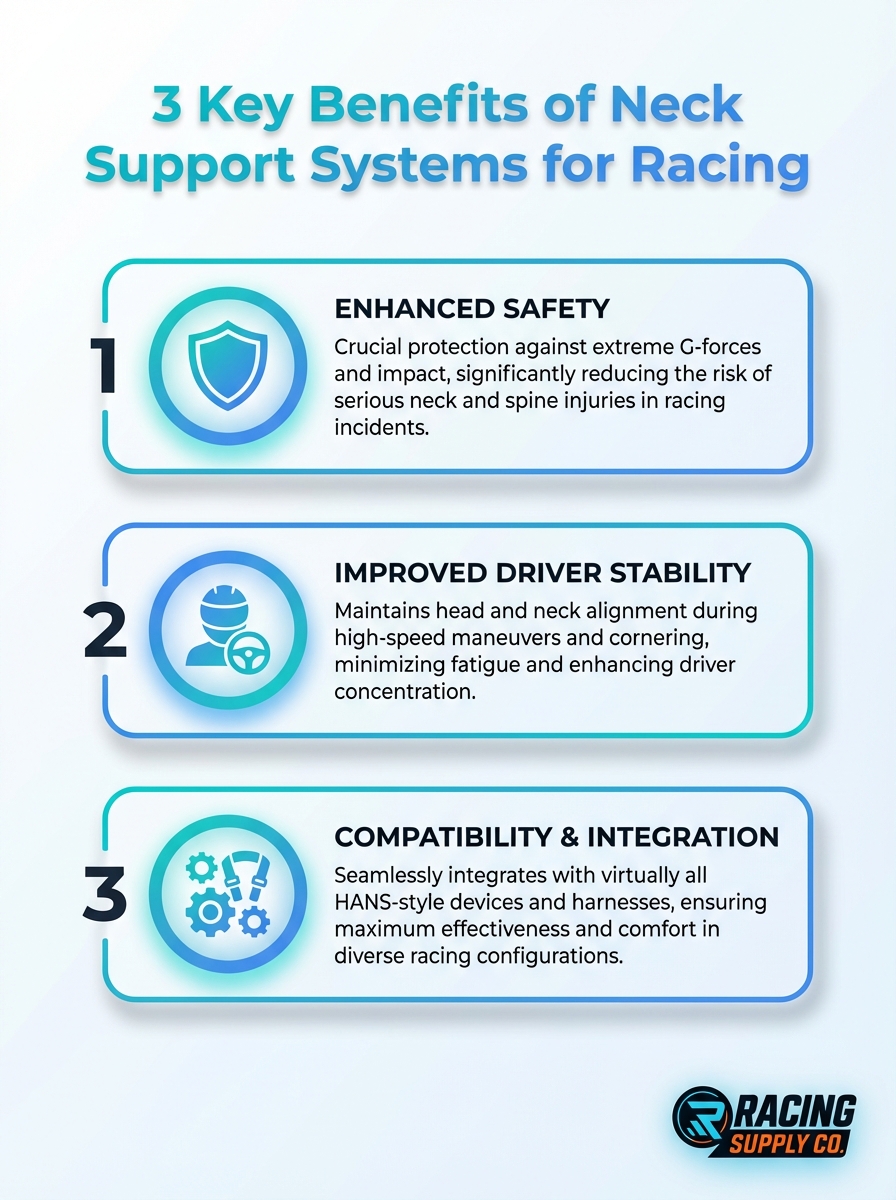

This infographic highlights three key benefits of neck support systems for racing. It shows how these systems enhance safety, reduce fatigue, and improve control on the track.

4. Premium Neck Support Integration: Sparco Stealth RF Carbon SA2025

If you are looking for a top-tier helmet to pair with your neck restraint, carbon fiber shells with FIA and Snell approval sit at the sharp end. They are lighter, which matters a lot when a device is resting on your shoulders and collarbones.

Less mass on your head means less rotational energy in a crash and less fatigue over a long stint, especially when combined with a properly fitted HANS or similar device.

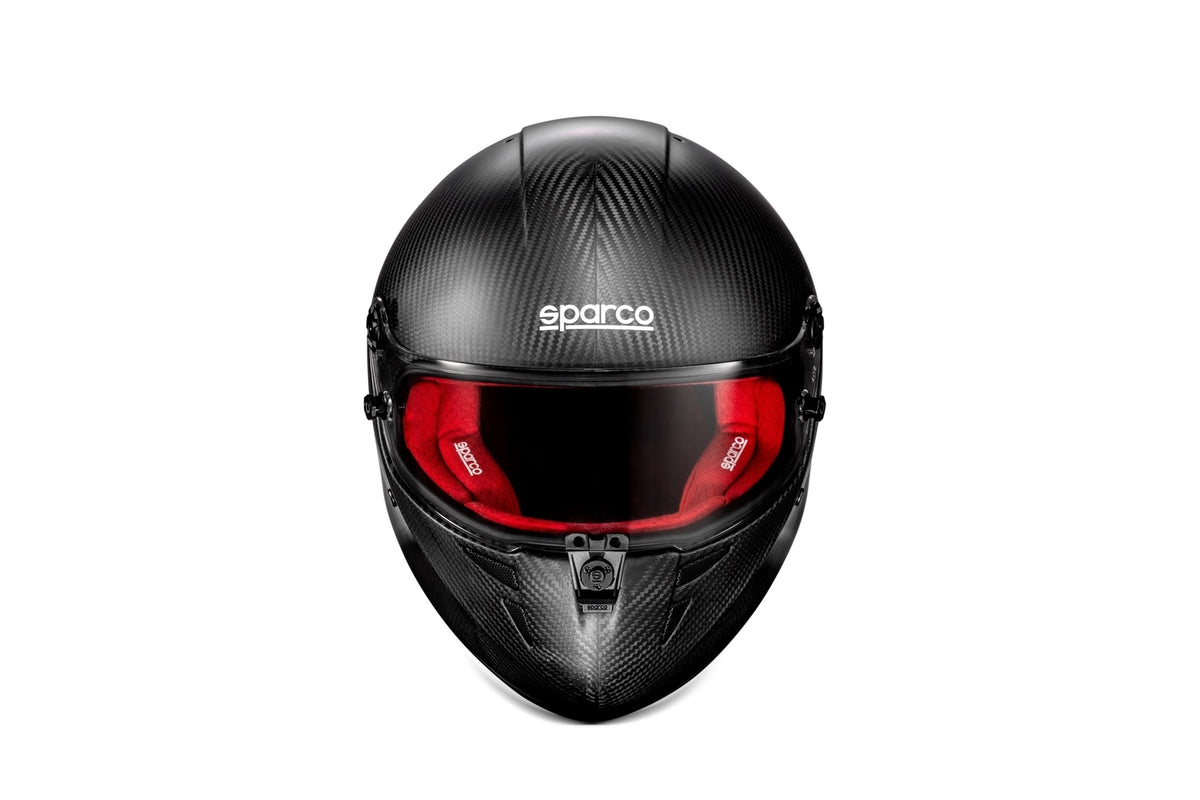

Sparco Stealth RF Carbon Features

The SPARCO BRH0003B0R010ML Stealth RF Carbon helmet is a full-face carbon fiber model, FIA approved and certified to Snell SA2025. It is specifically listed as “Head and Neck Support Ready,” which is what you want to see when pairing with a neck restraint.

This helmet combines a carbon shell with red lining for comfort and visibility and is sized for Medium/Large fit. At CAD1473.44, it is aimed at drivers who want pro-level gear and are chasing every safety and performance advantage.

Who Is This Helmet For?

A helmet like the Stealth RF Carbon is ideal for serious road racers, endurance teams, and high-horsepower builds where weight and safety both matter. It is also attractive for drivers who want FIA homologation alongside Snell for international or higher-end series.

If you are already investing in a high quality harness and neck restraint, pairing them with a top-spec helmet like this gives you a complete, balanced system built to handle big impacts.

Did You Know?

Formula 1 adopted the HANS device as mandatory from January 1, 2003, and it has since become a global standard for neck protection across professional motorsport.

5. Harnesses And Neck Support: Why “HANS Ready” Belts Matter

Your harness is the bridge between your body, the neck restraint, and the chassis. If it is not built for HANS-style devices, the load paths in a crash will not work the way the engineers intended.

We carry multiple Schroth harness options that are specifically “Hans Ready,” with profiles and hardware shaped to sit correctly over a device and keep you anchored to the seat.

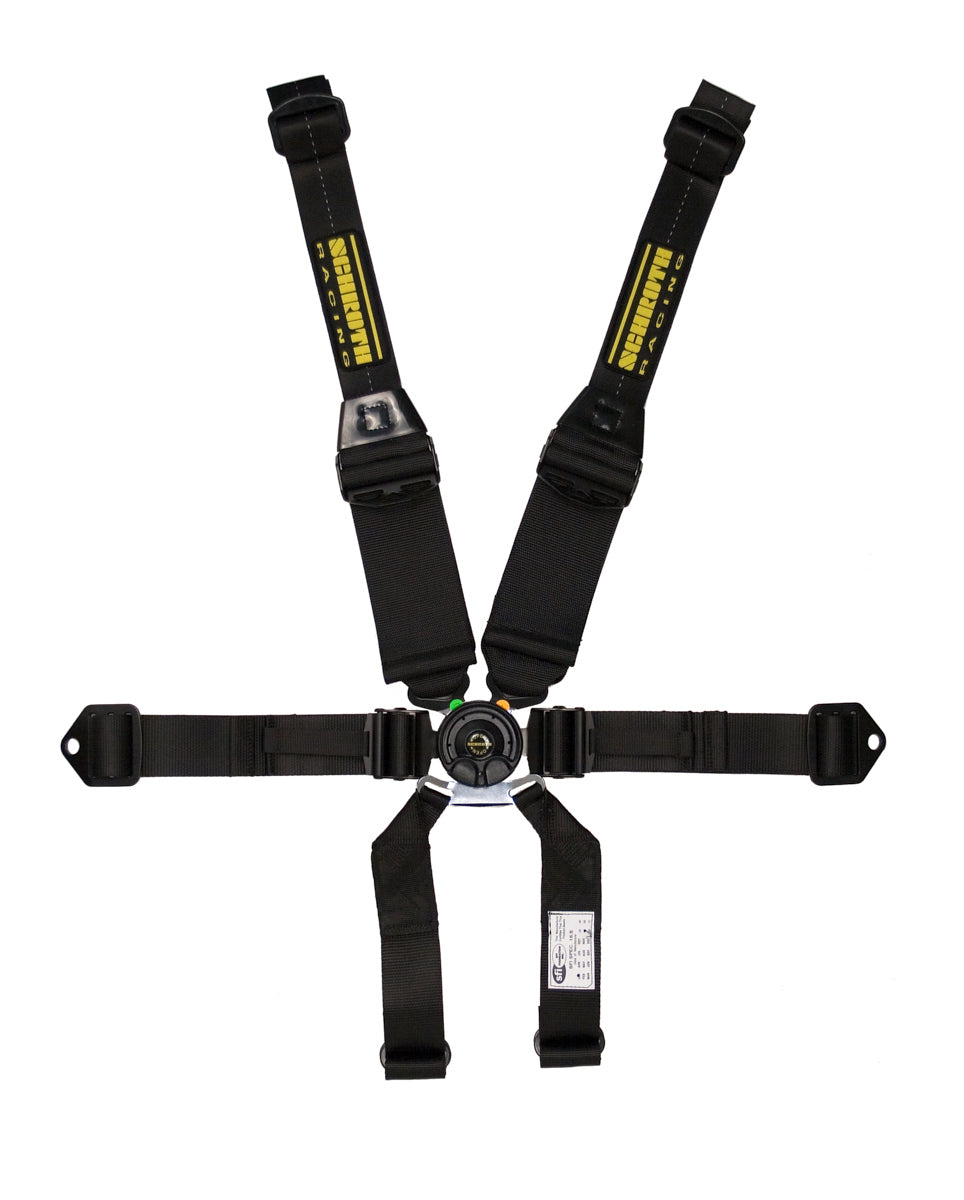

Schroth Profi II 6-Point, SFI 16.5, HANS Ready

The SCHROTH RACING SR91156NCPU Profi II is a 6 point harness with a camlock, rated to SFI 16.5. It features pull up lap adjusters and clip-in or wrap-around attachment points.

Most importantly for neck safety, it is listed as “HANS Ready” and uses shoulder straps designed to sit on top of your head and neck restraint without twisting or bunching. Pricing comes in at CAD925.56.

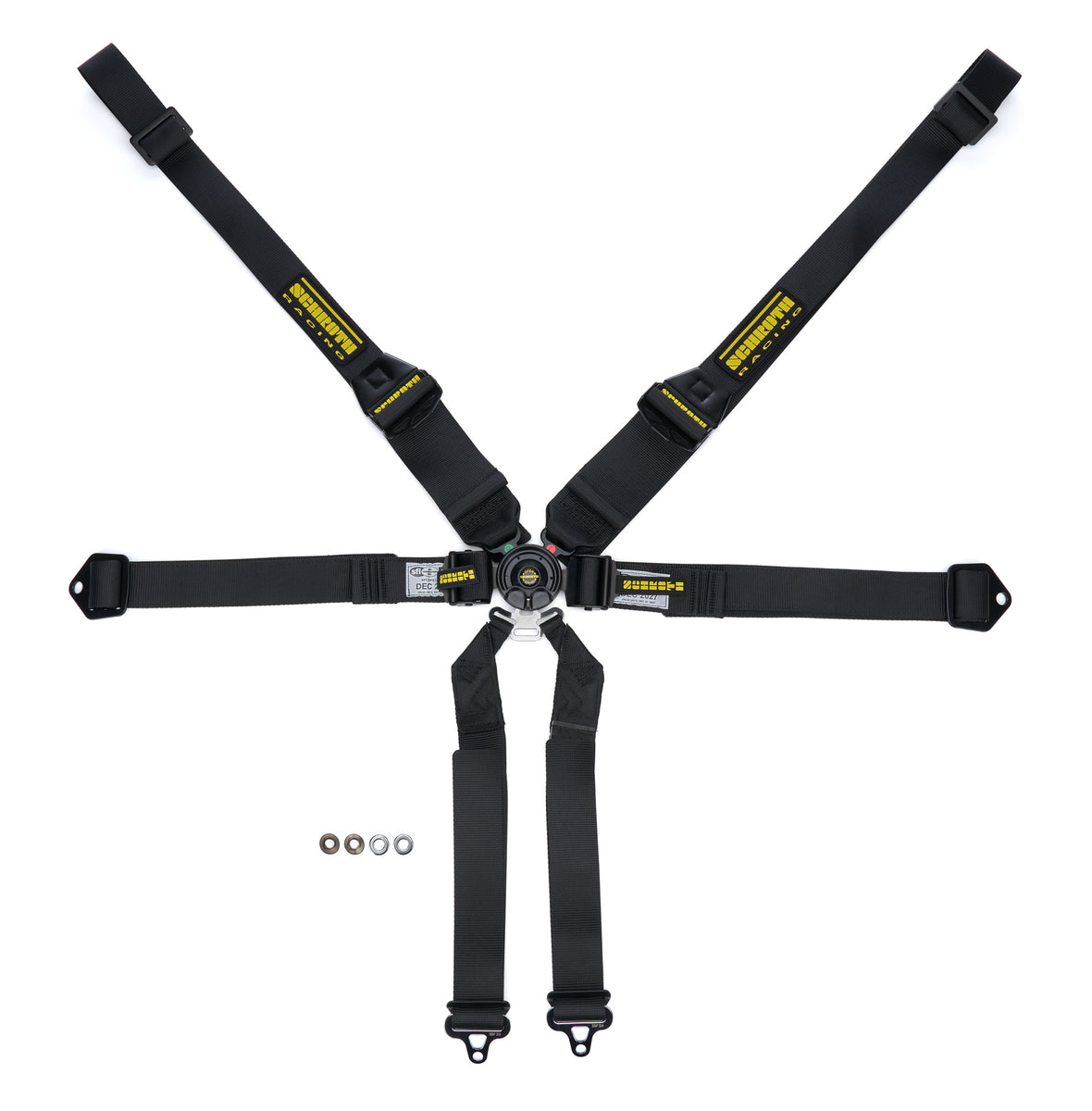

Schroth Profi II SFI HANS Black, SFI 16.5, 6-Point

Another option is the SCHROTH RACING SR91543-6 Profi II harness, also a 6 point SFI 16.5 setup with a camlock. It uses pull down adjusters and bolt-in or wrap-around fitment.

This kit is likewise “Hans Ready,” designed to keep your restraint in the correct position as loads spike in a crash. The price reflects its high spec at CAD1327.71, making it an investment-grade safety piece.

6. Value-Focused Neck Support Harness: Schroth Profi 2x2 6-Point

If you are building a neck support system on a tighter budget, you still need a harness that speaks the same language as your HANS or equivalent device. Cutting corners here does not make sense, so we look for value inside the right spec range.

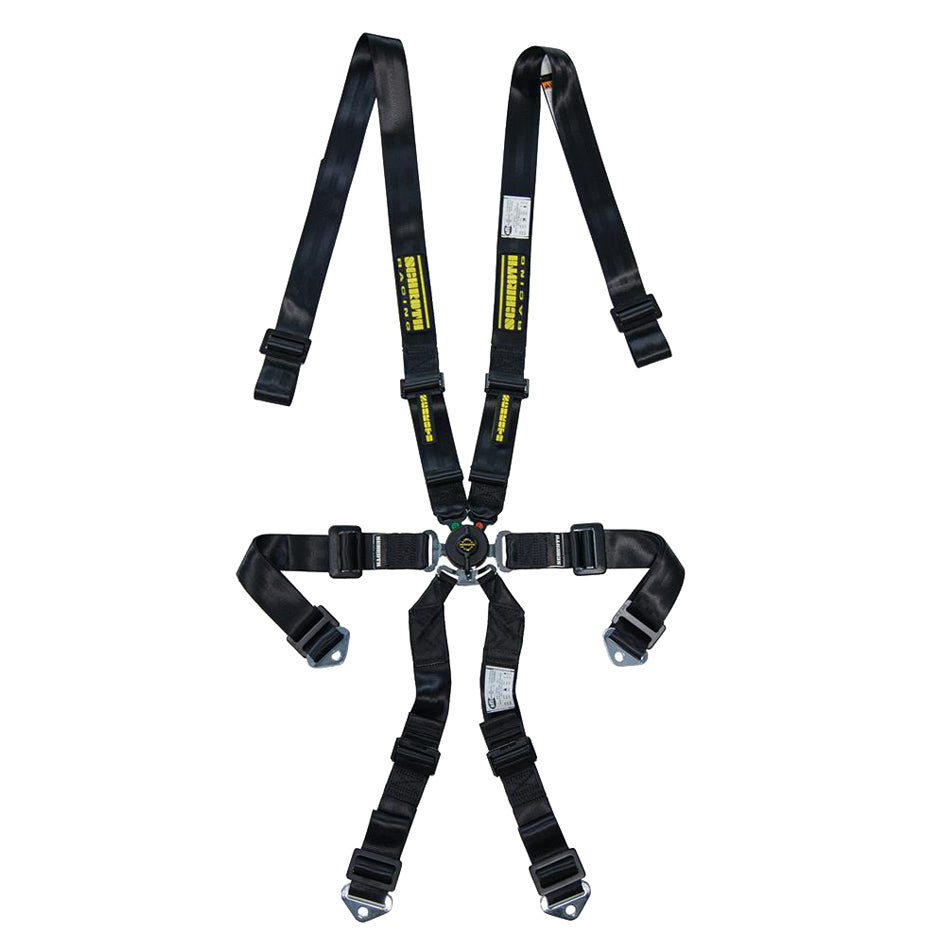

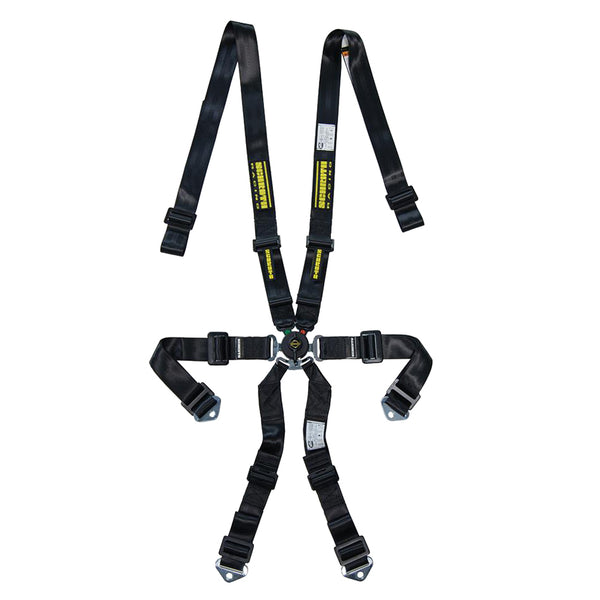

The SCHROTH RACING SR91152PUO-6 Profi 2x2 is a strong answer, giving you a proper 6 point, HANS ready harness at a more approachable price point.

Key Specs And Neck Support Relevance

The Profi 2x2 is a 6 point camlock harness rated to SFI 16.1. It uses 2 inch shoulder and lap belts, pull up lap adjusters, and wrap-around attachments.

Again, the critical phrase is “Hans Ready,” which confirms the shoulder belts are shaped to work with a neck restraint. This lets the device capture your helmet and reduce neck loads instead of pulling at your throat or shoulders incorrectly.

Pricing And Who It Suits

At CAD596.08, the SR91152PUO-6 is one of the more affordable paths into a proper neck support system when combined with a compatible helmet and restraint. It is aimed at club racers, track-day regulars, and grassroots teams who still take safety seriously.

If you are upgrading from an older non-HANS harness, this is a solid way to bring your car up to modern neck support standards without blowing the entire season budget.

7. Certification Standards: Snell, FIA, SFI And Neck Protection

Helmet and harness certifications can look like alphabet soup, but they matter a lot for neck support. The way materials deform and the way forces are managed are baked into these standards.

For helmets, you will most often see Snell SA2020 and SA2025, sometimes alongside FIA homologation. For harnesses, SFI 16.1 and 16.5 are common, with SFI 38.1 applying to neck restraint devices themselves.

Why These Standards Matter To Your Neck

When a standard like SFI 38.1 is written, it is based on real crash sled testing that measures neck loads, head movement, and how the restraint interacts with belts and helmet. That is why NHRA and other sanctioning bodies lean so heavily on them.

A system built from Snell-rated, HNS-ready helmets, SFI-rated HANS devices, and SFI 16.1 or 16.5 HANS-ready harnesses is designed as a whole. That is where you get the 40 to 80 percent reductions in key injury metrics that the data shows.

Did You Know?

NHRA’s 2024 safety rules require a neck restraint device meeting SFI 38.1 for any vehicle running 150 mph or faster, with class-based options for approved neck collars at lower speeds.

8. Matching Your Gear: How To Build A Neck Support Combo

Putting together a neck support system is a bit like setting up suspension. The parts have to match if you want it to work right on the track.

We recommend approaching the setup in three steps and checking fit at each stage before you commit to drilling or mounting anything in the car.

Step 1: Pick Your Helmet

Start by choosing a helmet that fits your head shape properly and is listed as “Head and Neck Support Ready.” Decide whether you want full face or open face based on your series and personal preference.

Try the helmet on with the balaclava and glasses or radio kit you actually use at the track. A good fit is snug but not painful, with solid cheek and crown contact.

Step 2: Choose The Harness

Next, select a harness that matches your cage or belt mounting points, with at least 5 points and preferably 6, and is clearly labeled “HANS Ready.” Confirm the SFI rating meets your rulebook.

Check belt lengths and adjusters so you know you can get tight in your seat without running out of adjustment. Remember that the device will sit between your shoulders and the belts, which adds some stack height.

9. Comfort, Fit, And Real-World Usability

A neck support system only works if you actually use it every session. That means comfort is not optional, especially for endurance racing or hot summer events.

The right combination of helmet weight, device shape, and harness routing can reduce neck strain rather than add to it, which keeps you sharper late in the day.

Helmets And Harnesses That Help Reduce Fatigue

Lighter helmets like the Sparco RF Carbon take a load off your neck, literally, which you notice on long stints. Open-face options like the ZAMP RZ-18H can improve airflow in some cars, making the full system more tolerable in the heat.

Harnesses with smooth adjusters and good padding reduce hot spots and make it easier to get properly tight without feeling like you are being crushed. That tightness is what lets the HANS or similar device actually do its job.

Practice Strapping In

We always recommend practicing full strap-in and exit drills in the shop before race day. Put on your suit, helmet, neck restraint, and harness and time how long it takes to get in and out.

This is where you can discover belt routing issues, comfort problems, or interference with steering wheels and nets before they cost you time in the pits or create a safety issue on track.

10. Comparing Example Neck Support Combos

To make things concrete, here is a quick comparison of example helmet and harness combinations built around neck support systems. Each combo is aimed at a slightly different racer profile.

All pricing is in CAD and taken from the product data we carry, so you can see roughly where each setup lands in the budget.

Conclusion

Neck support systems for racing are not just for the pros anymore. From budget club builds to full-blown endurance cars, the combination of a head and neck restraint, a compatible helmet, and a HANS-ready harness is now the standard for anyone serious about coming home in one piece.

At Racing Supply Co., we live and breathe this gear every weekend, and our catalog reflects that racer-first mindset. Whether you are eyeing a value combo with ZAMP and Schroth or a premium Sparco and Profi II setup, we are here to help you pick the right parts, get them fitted properly, and get you back on track with a neck support system you can trust when it counts.
